Description
EX HERVALLS GERMANY ATEX

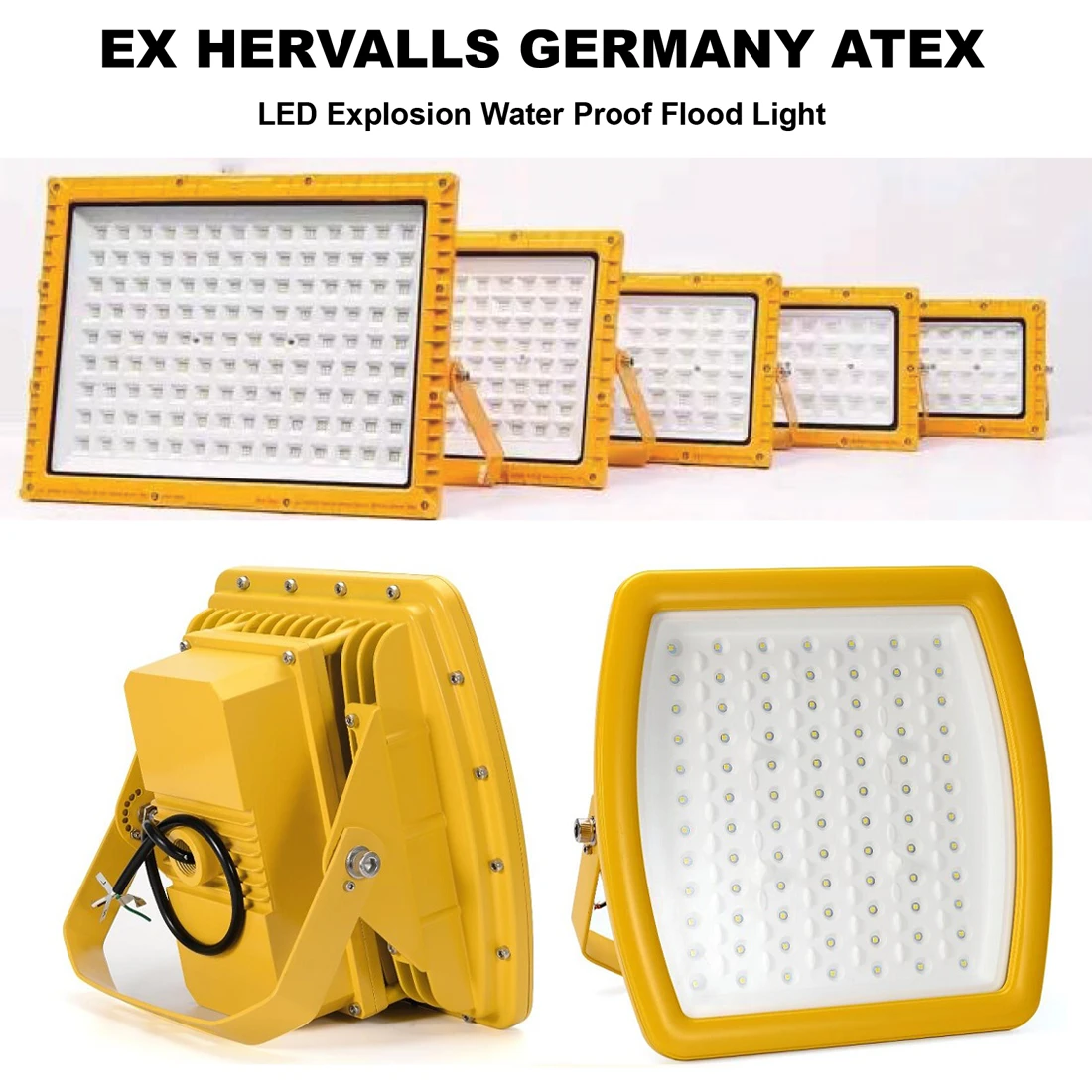

LED Explosion Water Proof Flood Light
Product Overview:
The Atex LED explosion water proof flood light is a high-quality lighting fixture designed to
provide reliable and safe illumination in hazardous environments.
Application:
Temperature class: T1 to T5
Gas explosive environment: Group IIA IIB IIC
Zone 1, Zone 2
Harsh environment, moist area
Ideal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc
Features:
1. Lamp body with good performance of high temperature resistance and climate resistance.
2. HBG Tempered glass with good transmittance.
3. Independent LED chamber for LED module, driver and wiring, high reliability and easy
installation and maintenance.
4. Energy – effivient technology up to 85% energy saving over HID fixtures.
5. Various mounting options
Specification
Ex-mark
E Ex d e mb IIC T5 Gb
Ex tb mb IIIC T95℃ Db
Power 1000W
LED Driver
AC85-110-285V 50-60Hz Isolated 4000V Surge
protection PF＞0.95
LED Chip MTC 500pcs 3030 6500K-10000K
Lumen 100000LM
Lamp size 480*360*130mm
2
IP Grade IP66 IP67
Body Material Dia-casting Aluminum
Ambient Temperature -30℃- +45℃
Installation:
1. Ensure the installation area is clean and free from debris.
2. Mount the lamp securely using the provided mounting brackets and screws.
3. Connect the power supply in accordance with local electrical regulations.
Operation:
1. Switch on the lamp using the designated power switch.
2. The lamp will provide bright and consistent light.
Maintenance:
1. Regularly inspect the lamp for any signs of damage or wear.
2. Clean the lamp surface with a soft, dry cloth to remove dirt and dust.
3. Do not attempt to repair the lamp without professional training.
Safety Precautions:
1. Only use the lamp in the specified explosive environments.
2. Do not expose the lamp to excessive moisture or extreme temperatures.
3. Disconnect the power supply before performing any maintenance or inspection.
Warranty:
This Atex LED explosion water proof flood light is covered by a two-year warranty against
manufacturing defects.
Please read this instruction manual carefully before using the Atex LED explosion water proof
flood light to ensure safe and proper operation.
